RoHS CH27 ER SFP+ DWDM SFP 80KM SFP Transceiver

Name: RoHS CH27 ER SFP DWDM SFP 80KM SFP Transceiver
Brand: YXFiber
Price: 150.00 USD

China RoHS CH27 ER SFP+ DWDM SFP 80KM SFP Transceiver wholesale

Brand Name : YXFiber

Model Number : YXF-PP-DXXL-80D CH27

Certification : CE RoHS FCC

Place of Origin : Hubei, China

MOQ : 1pcs

Price : $150.00 / Piece

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Optical Fibers

No. of Fiber : 2.

Use : FTTH

Supply Voltage : 3.3V

Power : 0~+4dBm

Data rate : 10Gbps

Wavelength : 1559.79nm

Transmission distance : 80km

Interface : Duplex LC

Power consumption : <2W

Standard : 0°C to +70°C

Laser Type : EML DWDM

Sensitivity : <-23dBm

Application : (Data Center)

Port : Wuhan

Contact Now

10G DWDM CH27 1559.79nm 80km SFP+ Module Duplex LC

Features:

DWDM PON network

ITU-T DWDM grid wavelengths

Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates

Temperature Stabilized DWDM DFB Transmitterd

Multi channels optional

Low Power Dissipation 1.5W Maximum

Excellent ESD protection

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring of module temperature,

Supply Voltages, laser bias current, transmit optical power,

receive optical power

RoHS compliant and lead free

Applications:

DWDM optical links

DWDM PON network

Specification 10G DWDM SFP+

Product type	Data Rate	Wavelength	Reach	LD	TX Power	PD	Rx Sens
DWDM SFP+	10G	15xx.xx nm	40Km	EML	-1~3dbm	PIN	<-20dbm
DWDM SFP+	10G	15xx.xx nm	80Km	EML	0~4dbm	APD	<-24dbm
DWDM XFP	10G	15xx.xx nm	40Km	EML	-1~3dbm	PIN	<-16dbm
DWDM XFP	10G	15xx.xx nm	80Km	EML	0~4dbm	APD	<-24dbm

Product Name	YXF-PP-DXXL-80D CH27	Receiver Sensitivity	-23dBm
Space channel	0.8nm	Connector Type	Duplex LC
Data Rate	10G	Fiber Type	SMF
Package	DWDM SFP+	DDM	Yes
Wavelength	C band	Source	EML
Distance	80KM	Voltage	3.3V
Warranty	1 year	Operating Temperature	0℃ ~ 70 ℃

80KM SFP Transceiver

DWDM SFP 80KM

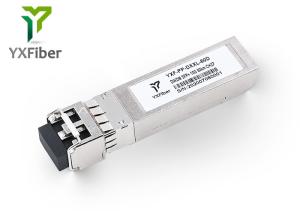

RoHS CH27 ER SFP+ DWDM SFP 80KM SFP Transceiver Images
