Place of Origin : Hubei, China
Brand Name : YXFiber
Model Number : YXF-P21S-LCD
Certification : CE RoHS FCC
MOQ : 1pcs
Price : $7.00
Packaging Details : 10pcs in Plastic tray
Delivery Time : 1~3working days after payment
Payment Terms : T/T
Supply Ability : 100000pcs per month
Type : Fiber Optic Transceivers
No. of Fiber : 2.
Use : FTTX
Supply Voltage : 3.3V
Power : -3~-10dBm
Data rate : 2.5G
Wavelength : 1310nm
Transmission distance : 2km
Interface : Duplex LC
Fiber Type : SMF
DDMI : Yes
Warranty : 1 Year
Selling Units : Single item
Single package size : 22X5X6 cm
Single gross weight : 0.030 kg
Package Type : 10pcs/ anti-static box.
2.5G Duplex 2km 1310nm LC Connector SFP Module
Features:
1. Industry standard Small Form Pluggable (SFP) package.
2. Digital diagnostic monitor interface compliant with SFF-8472.
3. Differential inputs and Differential outputs compliant with LVPECL and CML.
4. TTL signal detect indicator.
5. RoHS compliant.
6. Hot-pluggable capability.
Advantages:
1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 2.5Gbps 2km transmission distance.
2. The transmitter section and the receiver section work independently in the transceiver.
3. The receiver section contains an InGaAs PIN photo diode, a transimpedance amplifier and a post amplifier , functionally transmit received optical power to steady electrical data.
Parameter | Symbol | Min | Max | Unit |
Storage Temperature | TSTG | -40 | +85 | ºC |
Ambient Operating Temperature | TA | 0 | 70 | ºC |
Optical Rise/Fall Time | Tr /Tf | - | 0.26 | ns |
Eye Diagram | IEEE 802.3z and ANSI Fibre Channel Compliant | |||
Power Supply Current | Icc | - | 300 | mA |
Extinction Ratio | ER | 8.5 | - | dB |
Sensitivity | S | - | -18 | dBm |
Warning | assert>-30dBm,de-assert<-24dBm |
![]() |

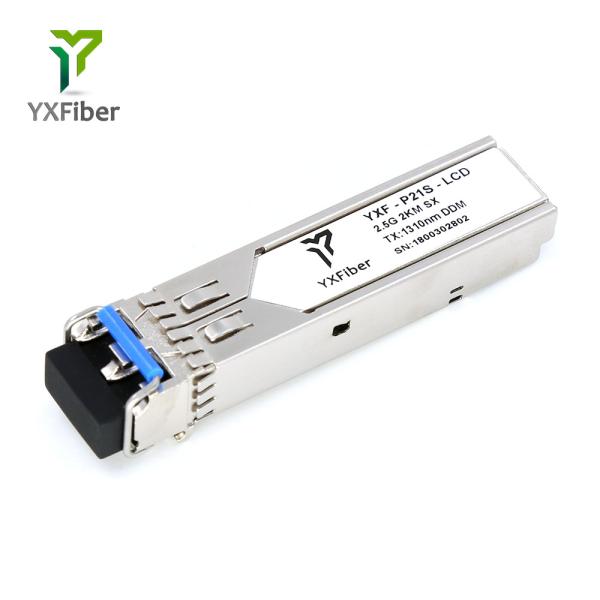

1310nm 2.5G SFP Transceiver Images |
