SC Connector 1.25G 850nm SFP Transceiver Module RTXM139-400

Name: SC Connector 125G 850nm SFP Transceiver Module RTXM139400
Brand: YXFiber
Price: 4.00 USD

China SC Connector 1.25G 850nm SFP Transceiver Module RTXM139-400 wholesale

Place of Origin : China

Brand Name : YXFiber

Model Number : YXF-P103-LCD

Certification : RoHS, ISO9001

Supply Ability : 10000 Piece/Pieces per Day

Packaging Details : 10pcs/ anti-static box.

MOQ : 1 Piece/Pieces

Price : $4.00 - $6.00 / Piece

Supply Voltage : 3.3V

Power : -3~-9dBm

Data rate : 1.25Gbps

Wavelength : 850nm

Transmission distance : 550m

Interface : Duplex LC

Fiber Type : MMF

DDMI : yes

Warranty : 3 years

Port : Wuhan

Contact Now

Product Description

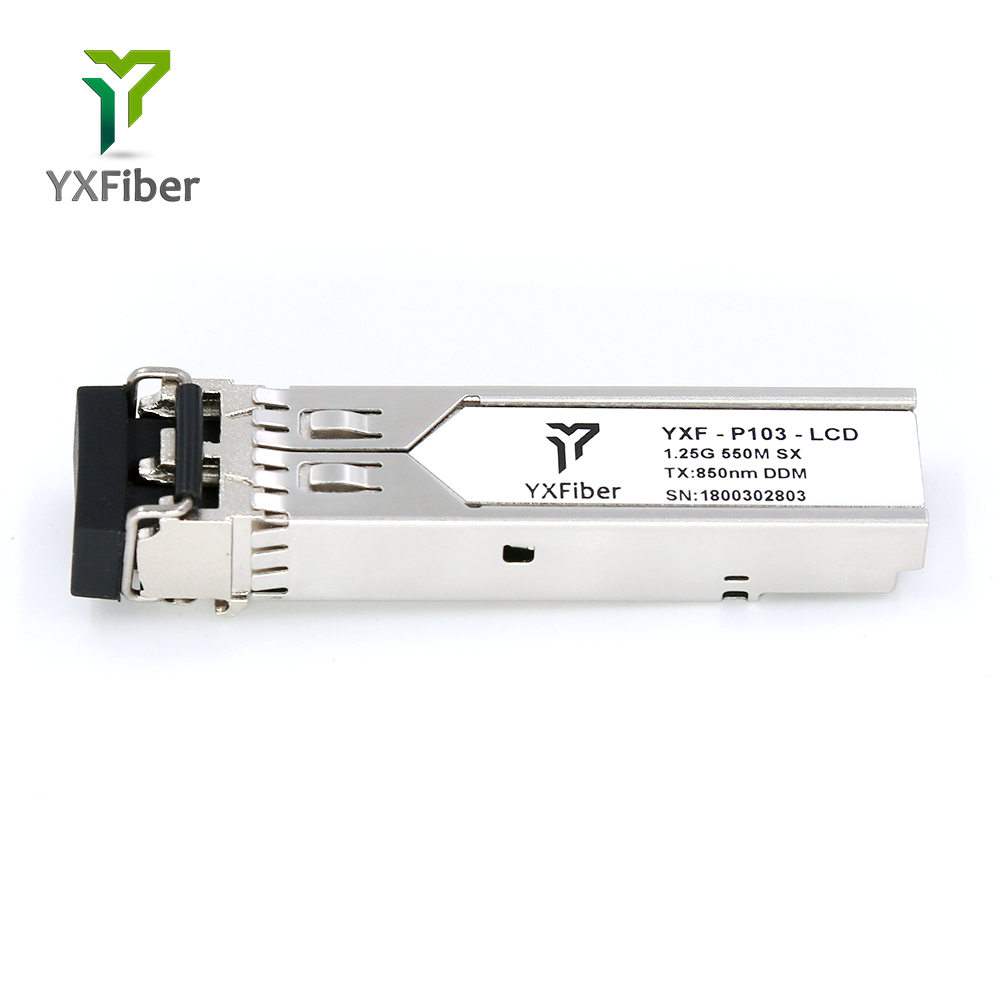

YXFiber SFP Cable SC Connector SFP Transceiver RTXM139-400

SFP 1.25G 850nm 550m SFP Module Duplex LC DDM

Features:

1. 2-wire interface for integrated Digital Diagnostic monitoring.

2. 850nm VCSEL and PIN receiver.

3. Very low EMI and excellent ESD protection.

4. Power consumption less than 1.0W.

5. Hot-pluggable capability.

Advantages:

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 550m transmission distance.

2. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.

Parameter	Symbol	Min	Max	Unit
Storage Temperature	TSTG	-40	+85	ºC
Ambient Operating Temperature	T_A	0	70	ºC
Optical Rise/Fall Time	Tr /Tf	-	0.26	ns
Eye Diagram	IEEE 802.3z and ANSI Fibre Channel Compliant
Power Supply Current	Icc	-	200	mA
Extinction Ratio	ER	9	13	dB
Sensitivity	S	-	-22	dBm
Warning	assert>-30dBm,de-assert<-24dBm

SC Connector 1.25G 850nm SFP Transceiver Module RTXM139-400

Application

SC Connector 1.25G 850nm SFP Transceiver Module RTXM139-400

Our Advantages

SC Connector 1.25G 850nm SFP Transceiver Module RTXM139-400

RTXM139-400

850nm SFP Transceiver Module

sfp 1.25 g

SC Connector 1.25G 850nm SFP Transceiver Module RTXM139-400 Images
